Our Design

Hua Hang Ship Design - Naval Architecture & Marine Engineering Excellence

Design Concept

Comprehensive Ship Design Solutions

GuangZhou Hua Hang Shipbuilding & Marine Engineering Design Company Limited provides complete vessel design services from concept to detail design. Our qualified team of marine technicians includes engineers with master and doctoral degrees, combined with marine professors of South China University of Technology (SCUT).

We provide excellent technical solutions including naval architecture & ocean engineering design, concept and basic design, detail design, tank test, vessel performance test and analysis.

Tug Boat Series

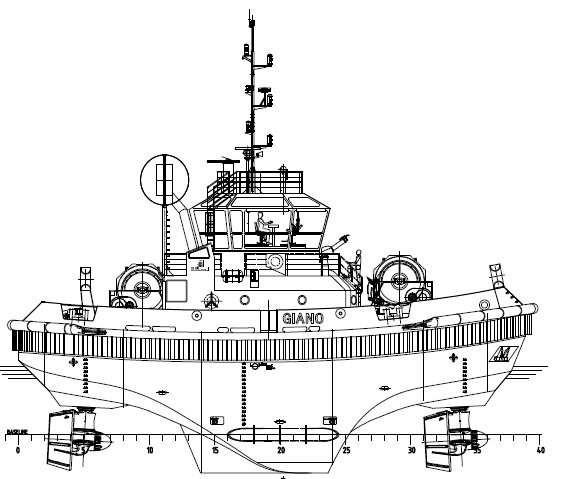

25.8m Harbor Tug

25.8m Harbor Tug

LOA25.75m
Engine Power2×1678Kw
Speed Max~12Kn
Bollard Pull55 Tons

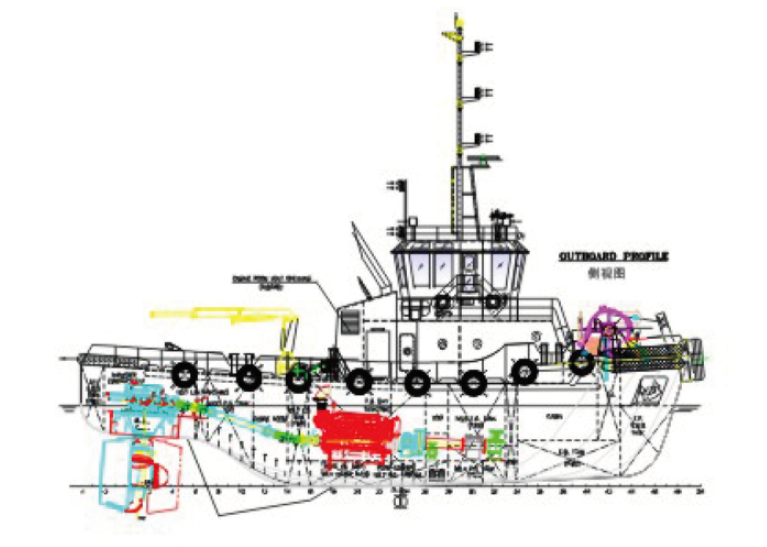

26m Harbor Tug

26m Harbor Tug

LOA26.5m
Engine Power2×2600BHP
Speed~12Kn
Bollard Pull65 Tons

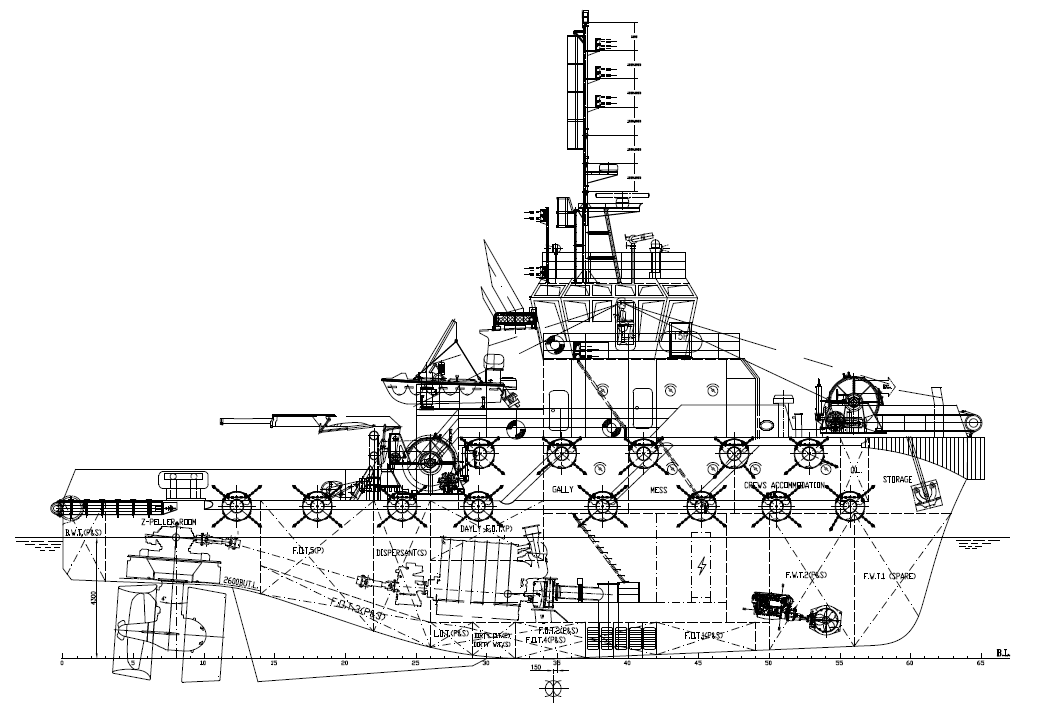

31m Harbor Tug

31m Harbor Tug

LOA31.0m
Engine Power2×2682BHP
Gross Tonnage460 Tons
Bollard Pull65 Tons

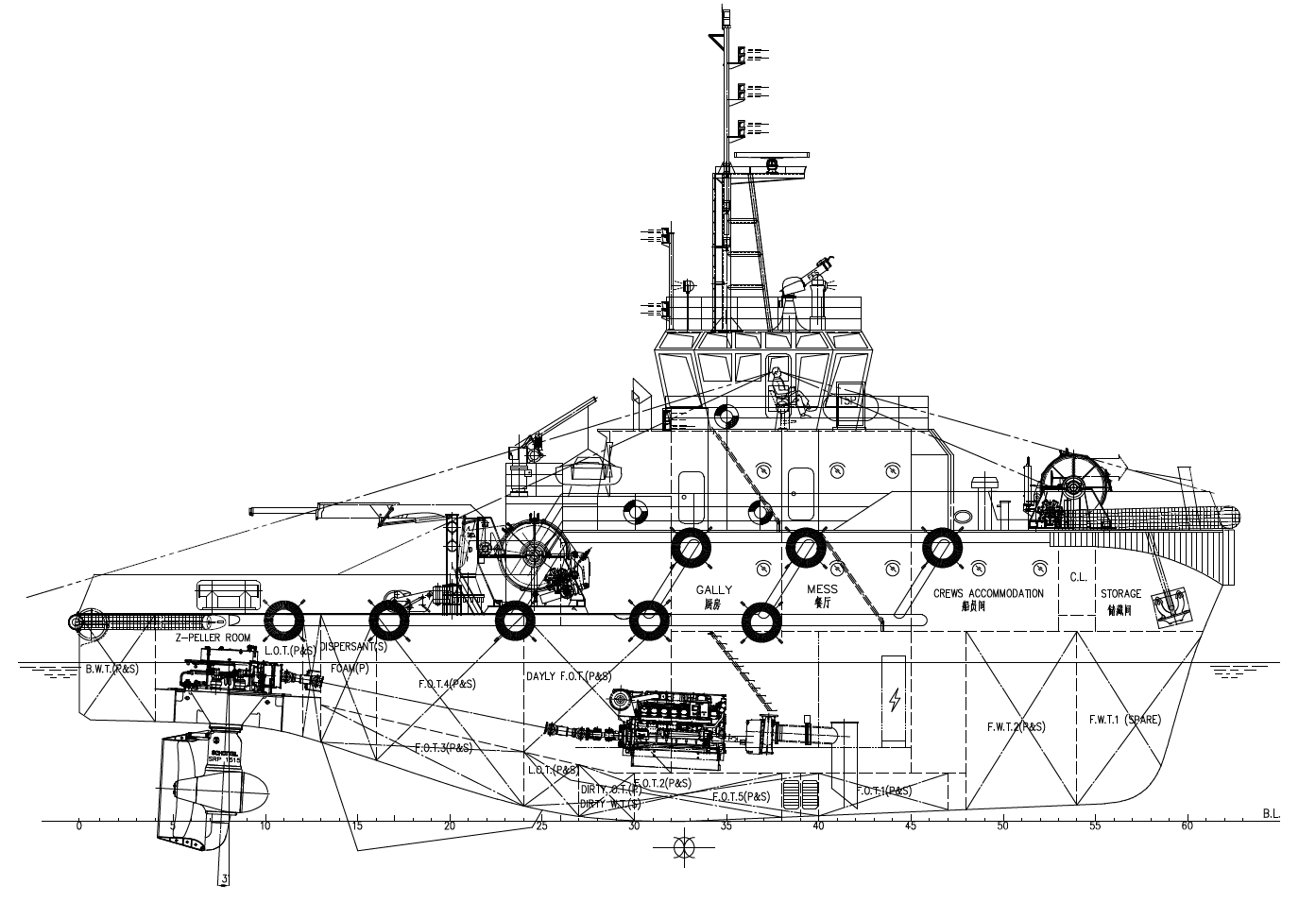

32m Harbor Tug

32m Harbor Tug

LOA32.6m
Engine Power2×2460Kw
Gross Tonnage498 Tons
Bollard Pull~80 Tons

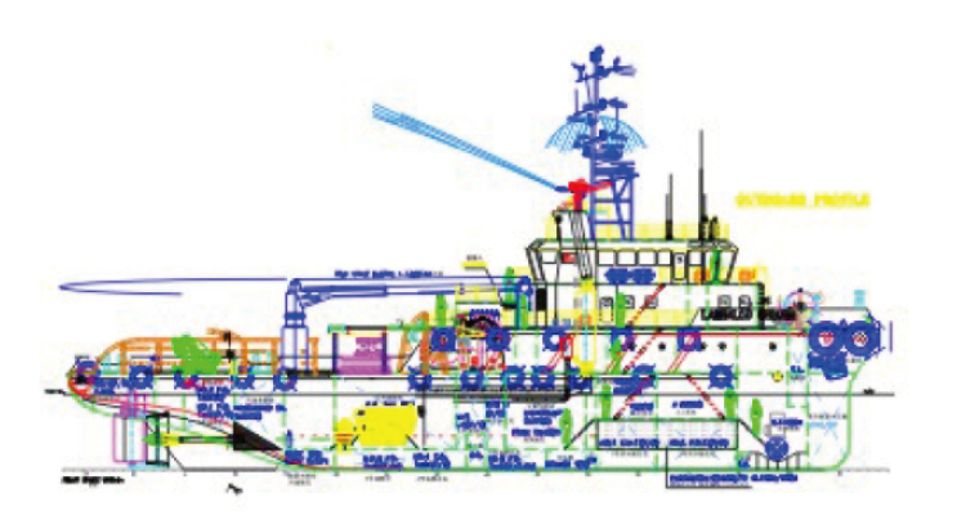

48m Anchor Handling Tug

48m Anchor Handling Tug

Offshore Support Vessel

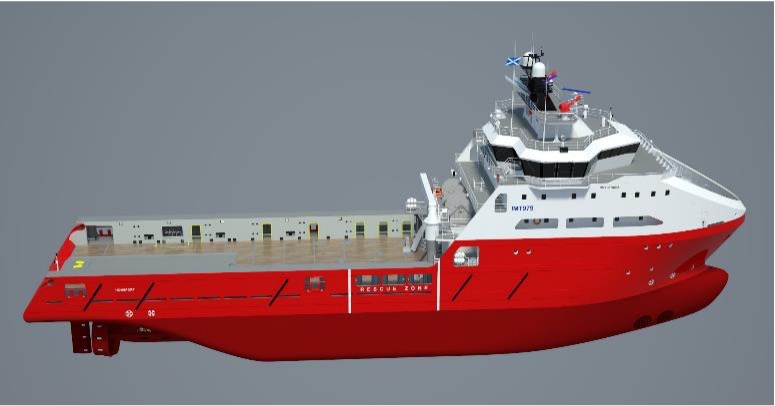

Anchor Handling Towing Supplier

Anchor Handling Towing Supplier

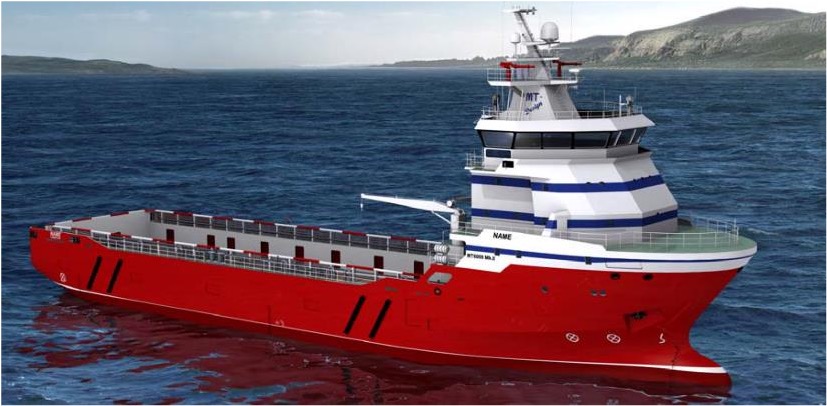

Platform Supply Vessel

Platform Supply Vessel

Ferry

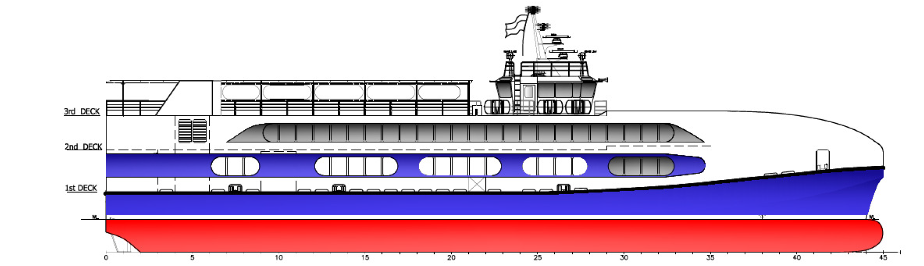

Catamaran Ferry

Catamaran Ferry

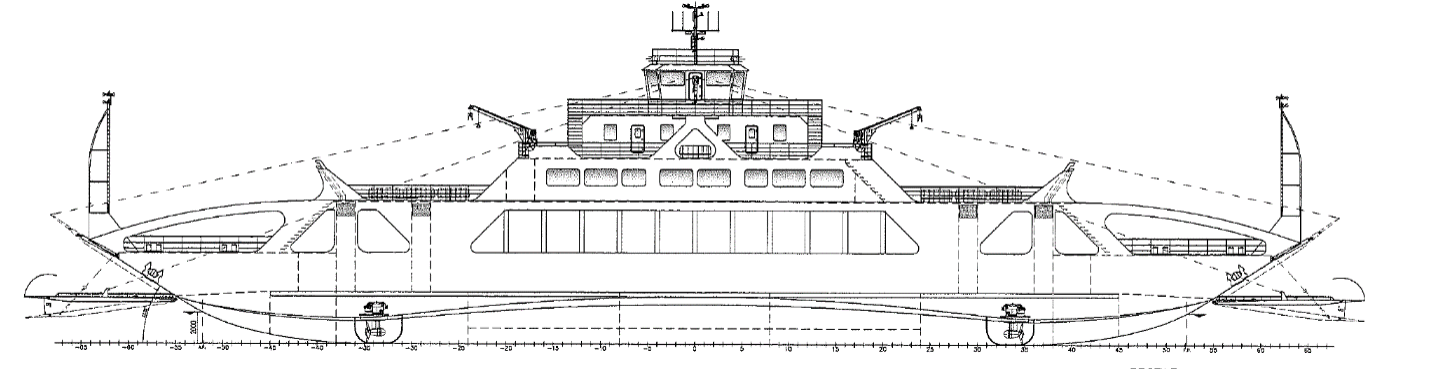

Vehicle Passenger Ferry

Vehicle Passenger Ferry

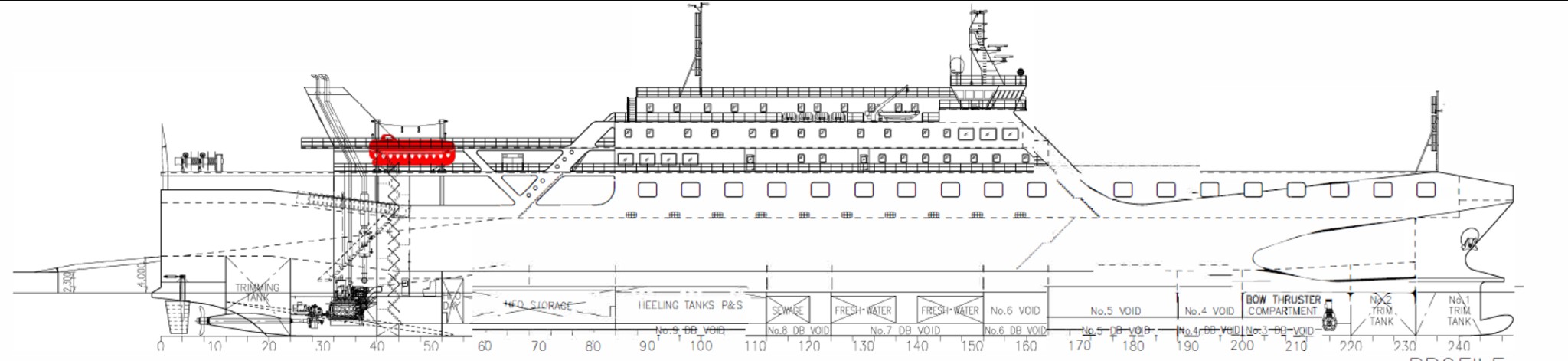

RORO Passenger Ferry

RORO Passenger Ferry

Cruise

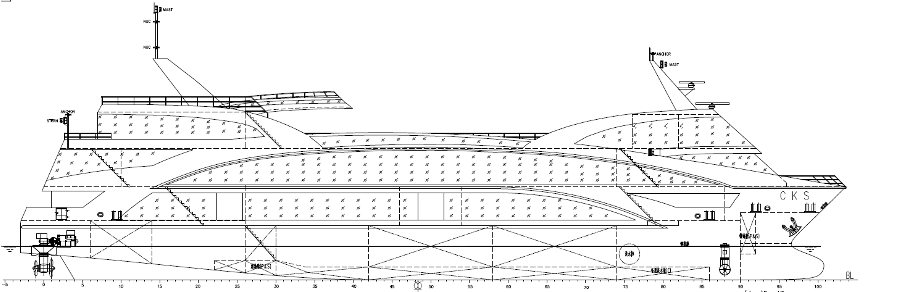

Small Scale Cruise

Small Scale Cruise

Aquaculture Support Vessel

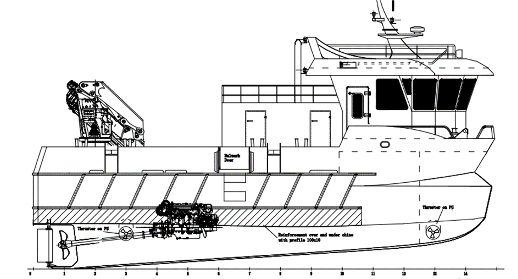

Fish Farm Service Boat

Fish Farm Service Boat

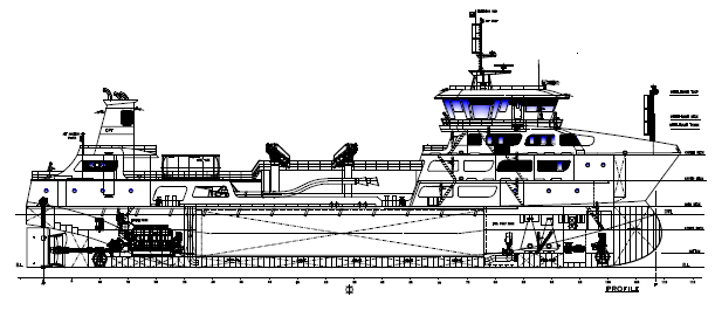

Live Fish Carrier (Well Boat)

Live Fish Carrier (Well Boat)

Cargo Vessels

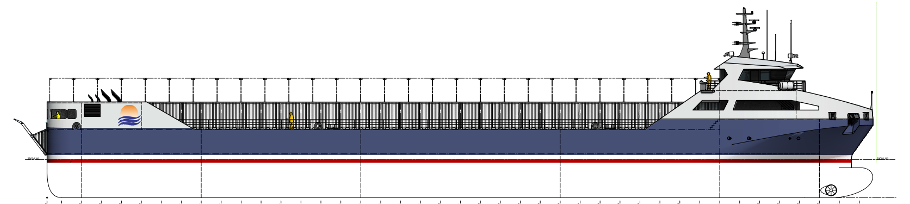

85m Stern Landing Container Ship

85m Stern Landing Container Ship

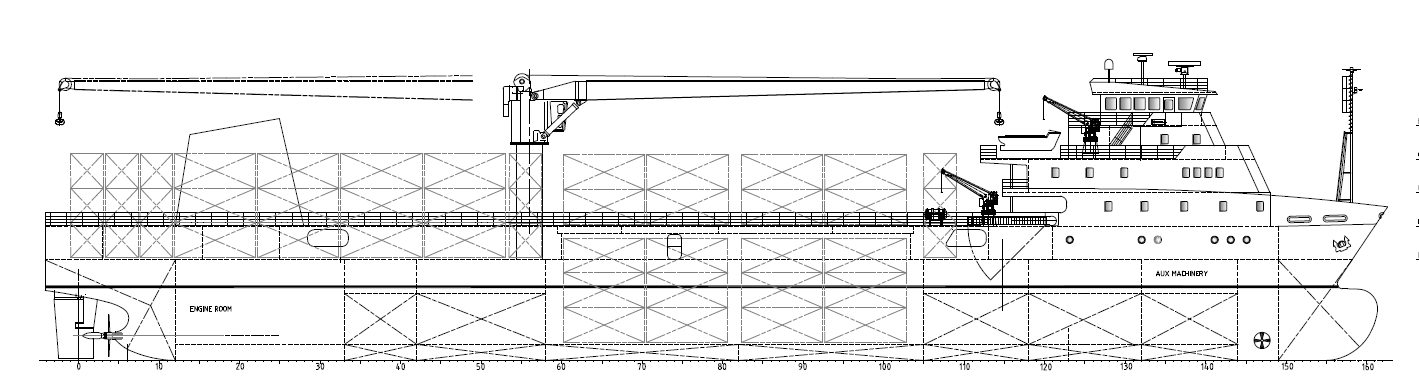

99m Container Ship

99m Container Ship

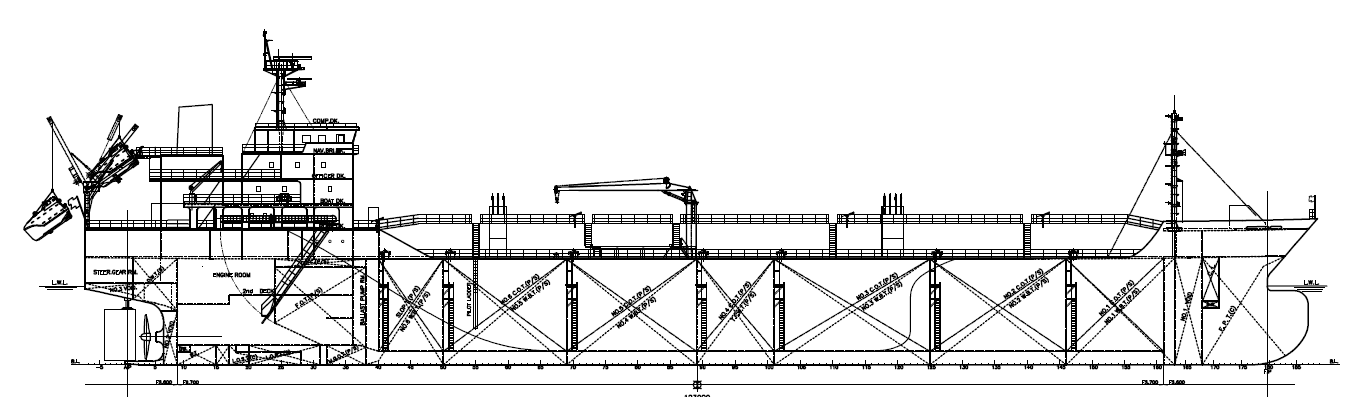

Stern Landing Cargo Vessel

Stern Landing Cargo Vessel

Oil Chemical Tanker

Oil Chemical Tanker

13,000DWT Duplex Stainless Steel Oil Chemical Tanker

Green Energy Vessel

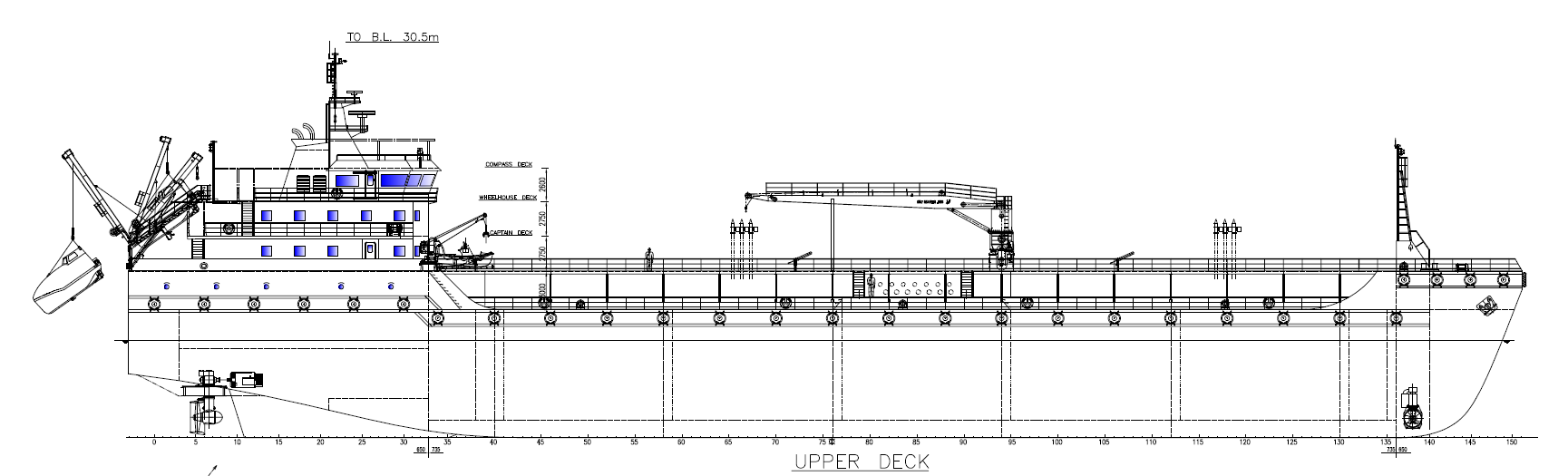

Methanol Bunkering Vessel

Methanol Bunkering with Methanol DF Engine

LOA109m
Breadth19.0m
Draft7.6m
Cargo Tank9000m³
Speed Max~12Kn

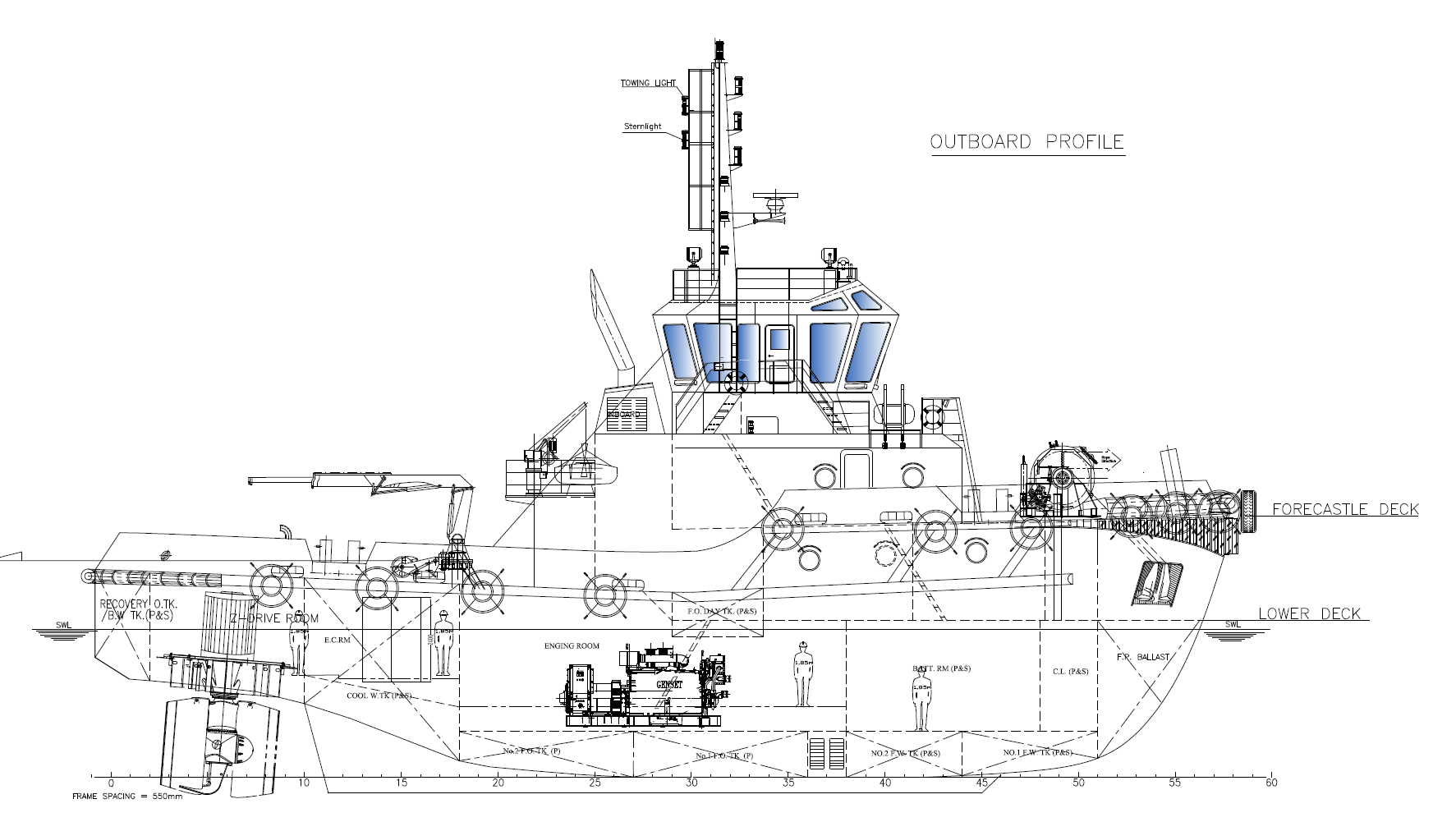

32m Electric Power Tug

32m Electrical Power Tug

LOA32m
Battery Capacity2×860Kwh
Speed Max~12.5Kn
Bollard Pull~63 Tons

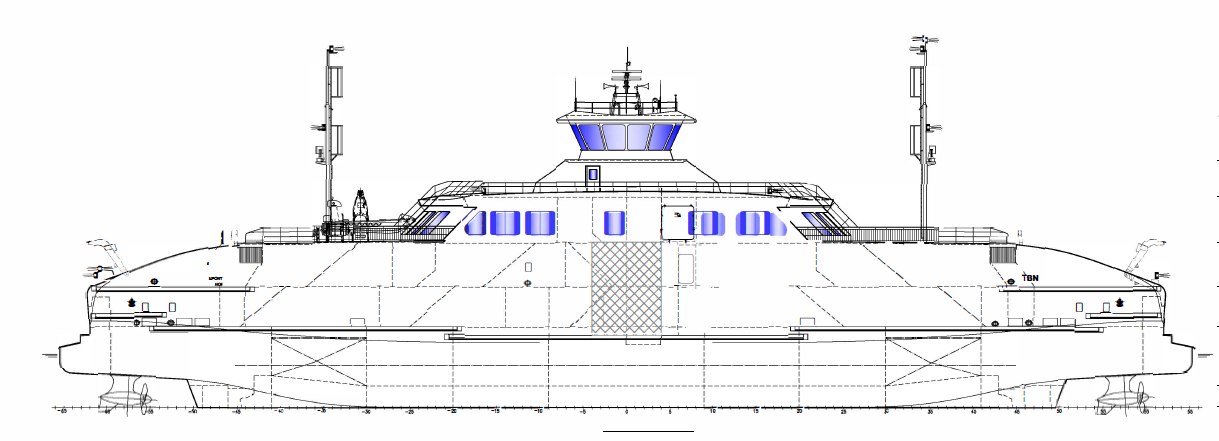

78m Electric Vehicle Passenger Ferry

78m Electrical Power Vehicle Passenger Ferry

LOA78.50m
Battery Capacity2×750Kwh
Speed Max~12Kn
Technical Drawings

Drawings

Detailed CAD drawings for our tug boat designs

26m Twin Screw Azimuth Tug

26m Twin Screw Azimuth Tug

General Arrangement Drawing

26m Fi-Fi 1 ASD Tug

26m 2×1750BHP Fi-Fi 1 ASD Tug

General Arrangement Drawing

26.5m 85 Tons BP ASD Tug

26.5m 85 Tons BP ASD Tug

General Arrangement Drawing

26.5m 70 Tons BP ARD Tug

26.5m 70 Tons BP ARD Tug

General Arrangement Drawing

31m X-Drive Tug

31m 70 Tons BP X-Drive Tug

General Arrangement Drawing

32m ASD Tug

32.0m 2×2500PS ASD Tug

General Arrangement Drawing

38m ASD Tug

38.0m 2×3000HP ASD Tug

General Arrangement Drawing

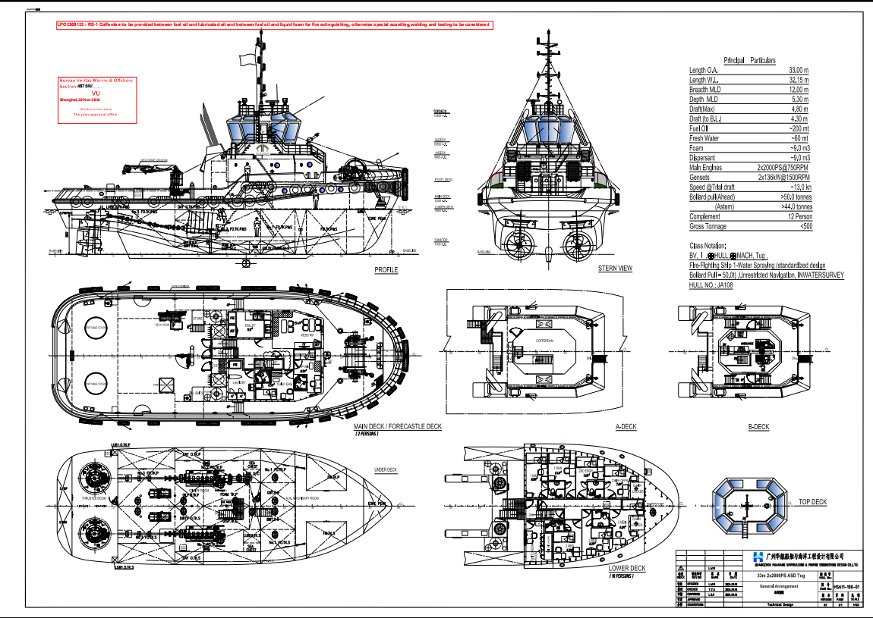

33M ASD Tug

33M ASD Tug

General Arrangement Drawing

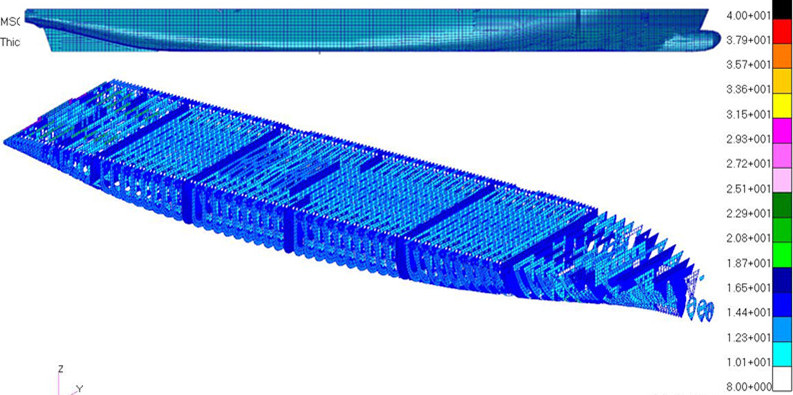

FEA Semi-submerged Ship

Semi-submerged Ship Structure

FEA Structural Analysis

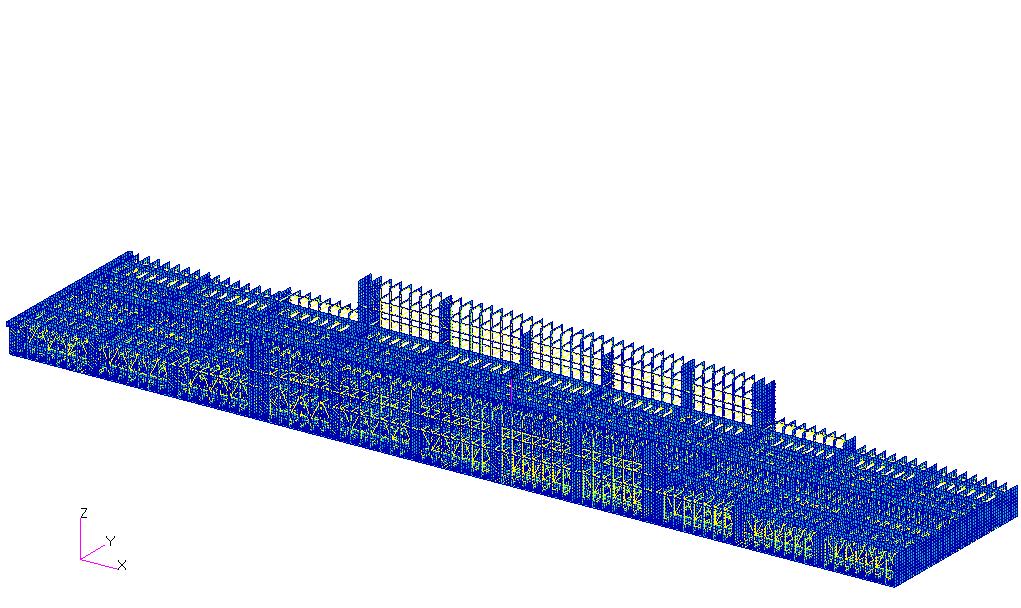

FEA Floating Dock

20000T Lifting Force Floating Dock

FEA Structural Analysis

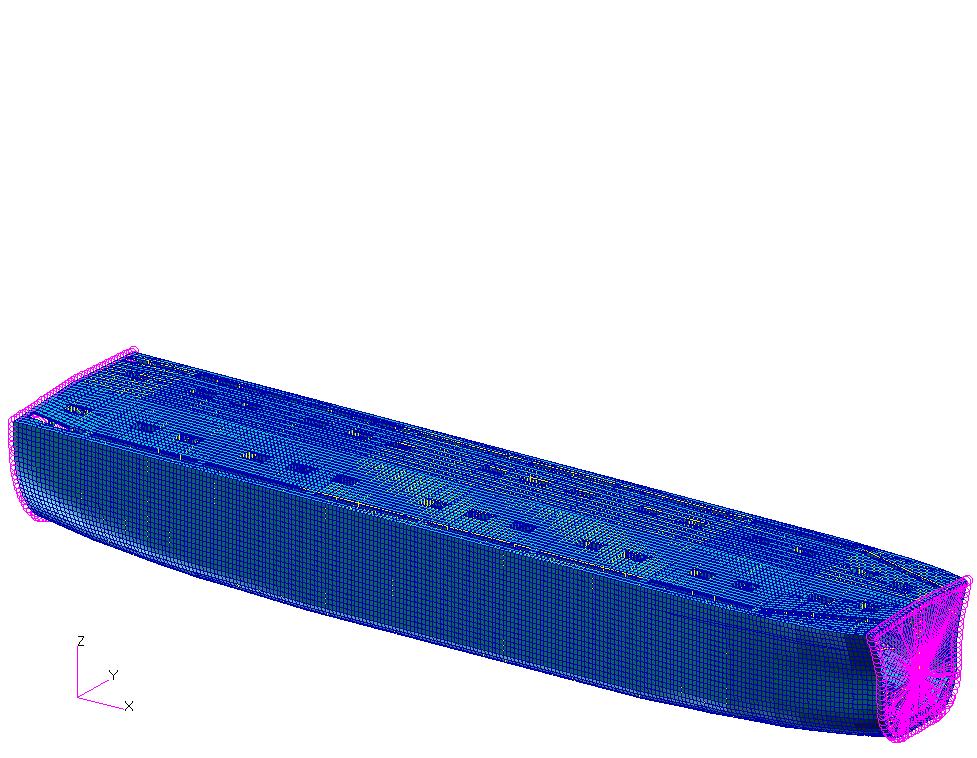

FEA Oil Tanker

Oil Tanker Section Structure

FEA Structural Analysis

Engineering Services

Performance Analysis & Ship Testing

Comprehensive technical solutions for vessel design and performance optimization

Our company provides multiple ship project tech-solutions, including vessel project design, speedability analysis, stability & damage stability calculation, ship loading manual, FEA of longitudinal strength, transverse strength, local structure strength and integrated vessel structure strength.

FEA Structural Analysis

  • Semi-submerged ship structure analysis
  • Floating dock structure analysis (up to 20000T lifting force)
  • Oil tanker section structure analysis
  • Longitudinal & transverse strength analysis
  • Local structure strength analysis
  • Integrated vessel structure strength

Ship Performance Testing

  • Ship performance test (DGPS)
  • Main engine axial efficiency test
  • Vessel local vibration test
  • Axial torsional vibration test
  • Cabin noise test
  • Stability & damage stability calculation
Capabilities

Vessel Types We Design

Complete range of vessel designs for various maritime applications

Ro-ro Passenger Ships

Ferries & Cruise

Tugboat Series

500-8000 HP

Beacon Vessels

3T-12T Lifting

Cargo Ships

3000-13500 DWT

Heavy Deck Carriers

10000-25000T

Oil Tankers

1250-3000 DWT

Floating Docks

1000-20000T Lift

LPG Carriers

Gas Transport
