Featured Projects
Representative Tugboat Specifications
Showcasing our flagship tugboat designs with detailed technical specifications

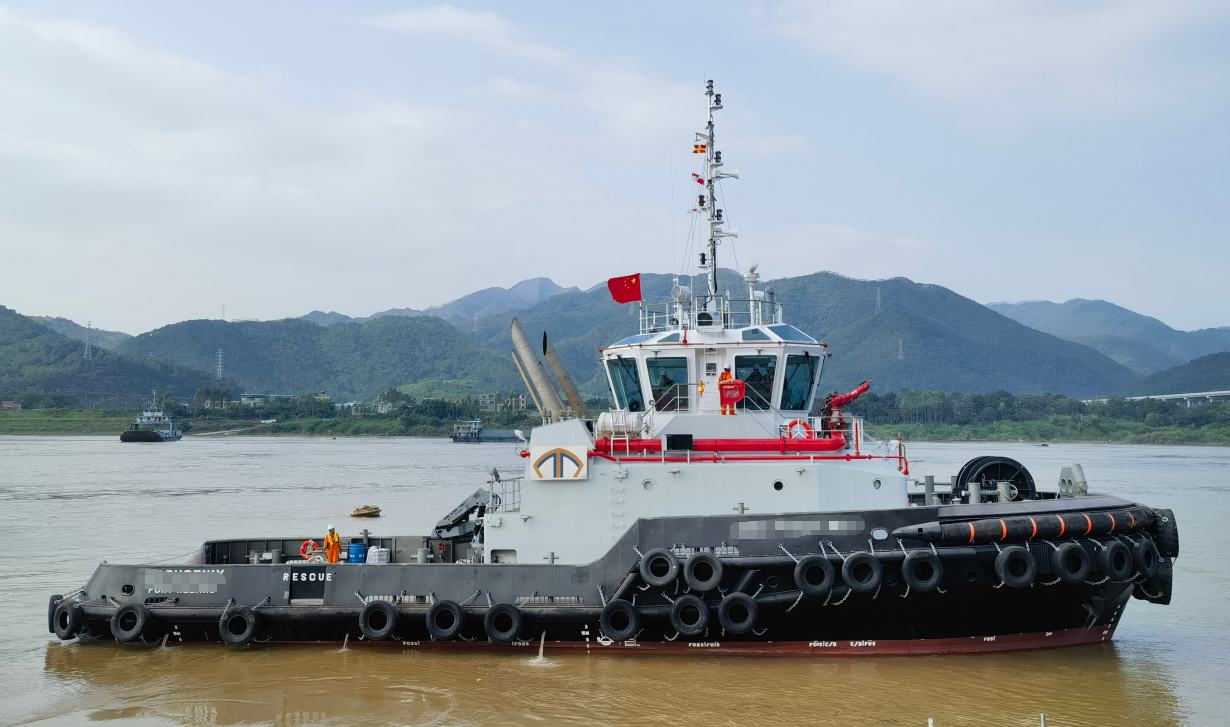

33M ASD Tug
BUILDER / DESIGNER
BuilderJUN'AN SHIPPING ENGINEERING
DesignerHUAHANG SHIP
PRINCIPAL CHARACTERISTICS
Length Overall33.0 m
Beam Molded12.0 m
Depth Molded5.30 m
Draught4.30 m
Gross Tonnage<500 GT
PERFORMANCE
Bollard Pull50 Tonnes
Top Speed13 knots
MAIN ENGINE
Main Engines2×1200ps at 750 rpm
ThrusterAZIMUTH
ACCOMMODATION
Crew CapacityFor 12 Men

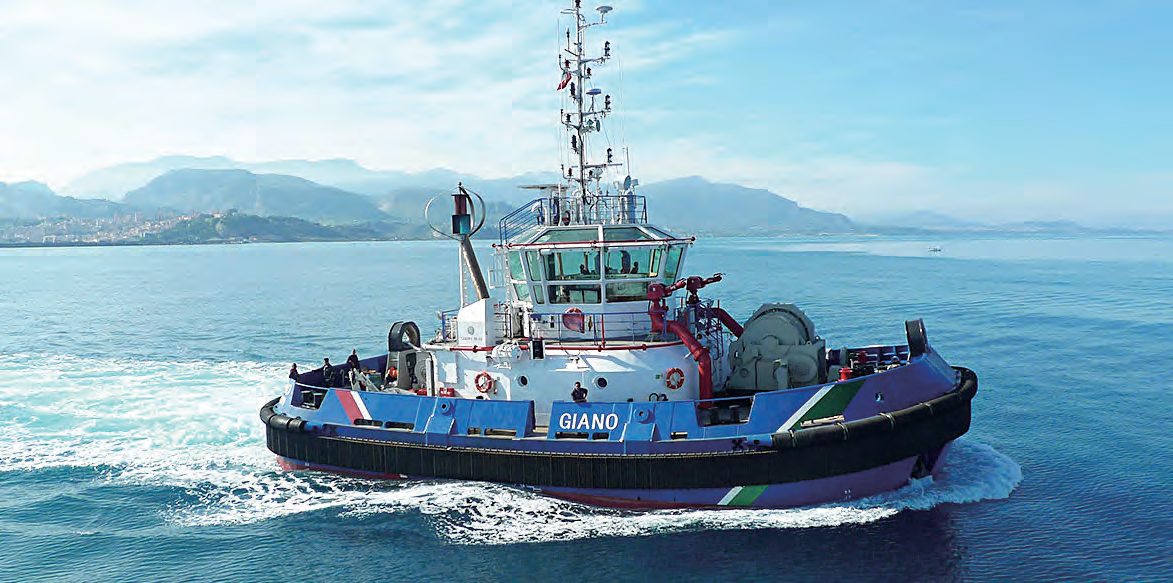

25.8M 2×2249BHP Escort Tug (GIANO)
GENERAL
TypeEscort Tug, Fire-Fighting Ship 1
ClassificationLR ✠100A1
FlagItaly
PRINCIPAL CHARACTERISTICS
Length Overall25.75 m
Beam13.00 m
Draft3.20 m
Depth5.10 m
GT273
TANK CAPACITIES
Fuel Capacity70 m³
Freshwater20 m³
PERFORMANCE
Speed Ahead9 knots
Bollard Pull55 tons
MAIN ENGINE
Main Engines2 × CAT 3512C-HD (2249 BHP)
Propulsion2 × Schottel SRP 3000CP

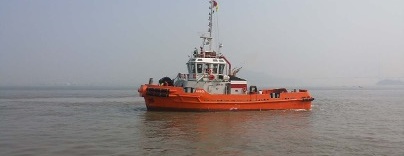

26.5M BP Z-Drive Tug
PRINCIPAL CHARACTERISTICS
Length Overall26.50 m
Breath Molded11.00 m
Depth Molded4.50 m
Draft Molded3.50 m
PERFORMANCE
Bollard Pull65 T
GENERAL
OwnerCPT
ClassificationABS

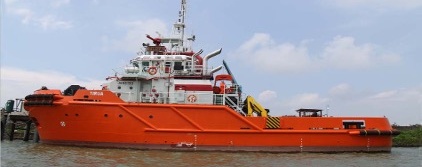

31M BP Z-Drive Tug
PRINCIPAL CHARACTERISTICS
Length Overall31.00 m
Breath Molded11.00 m
Depth Molded5.60 m
Draft Molded4.30 m
PERFORMANCE
Bollard Pull70 T
GENERAL
OwnerCPT
ClassificationABS

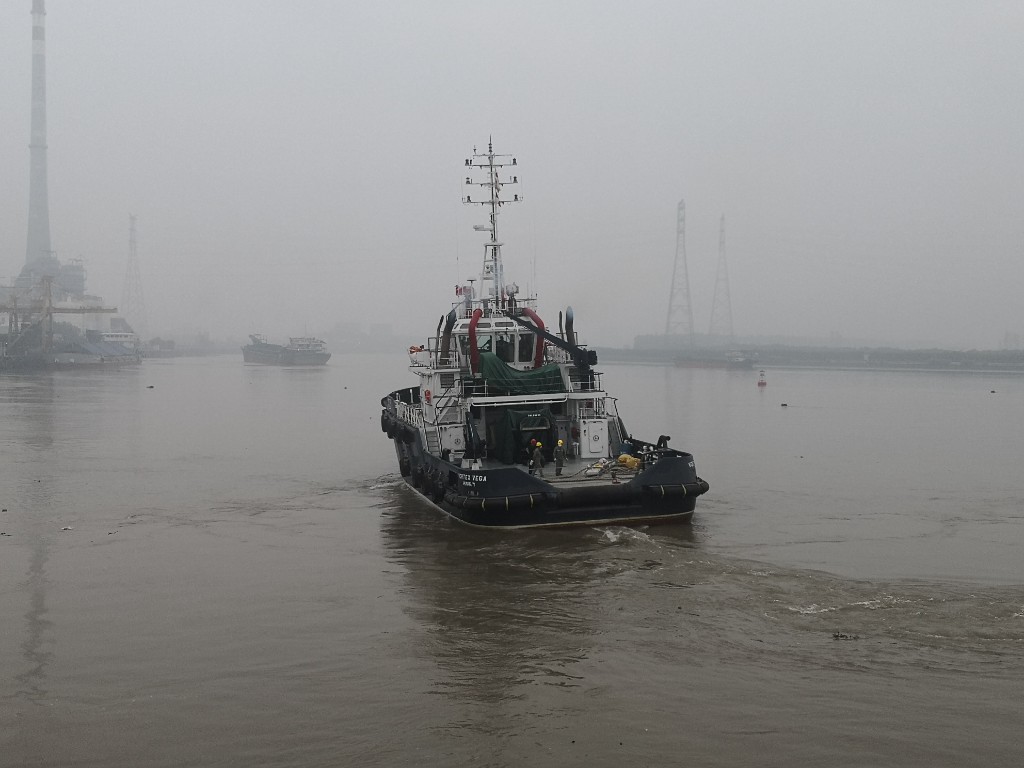

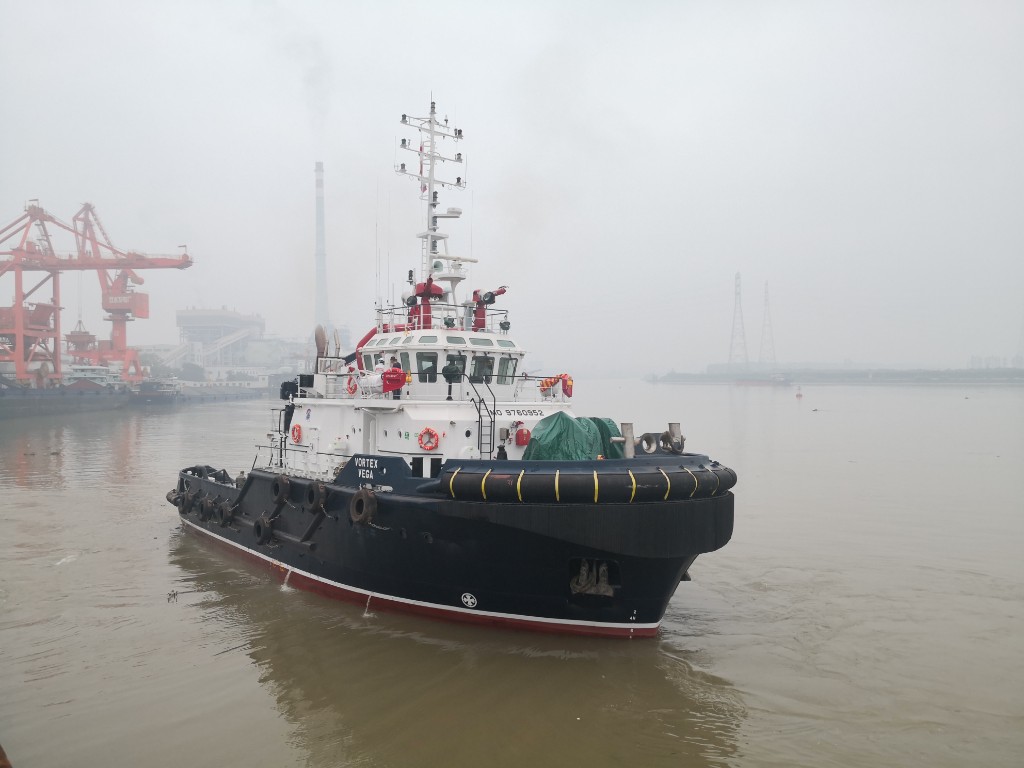

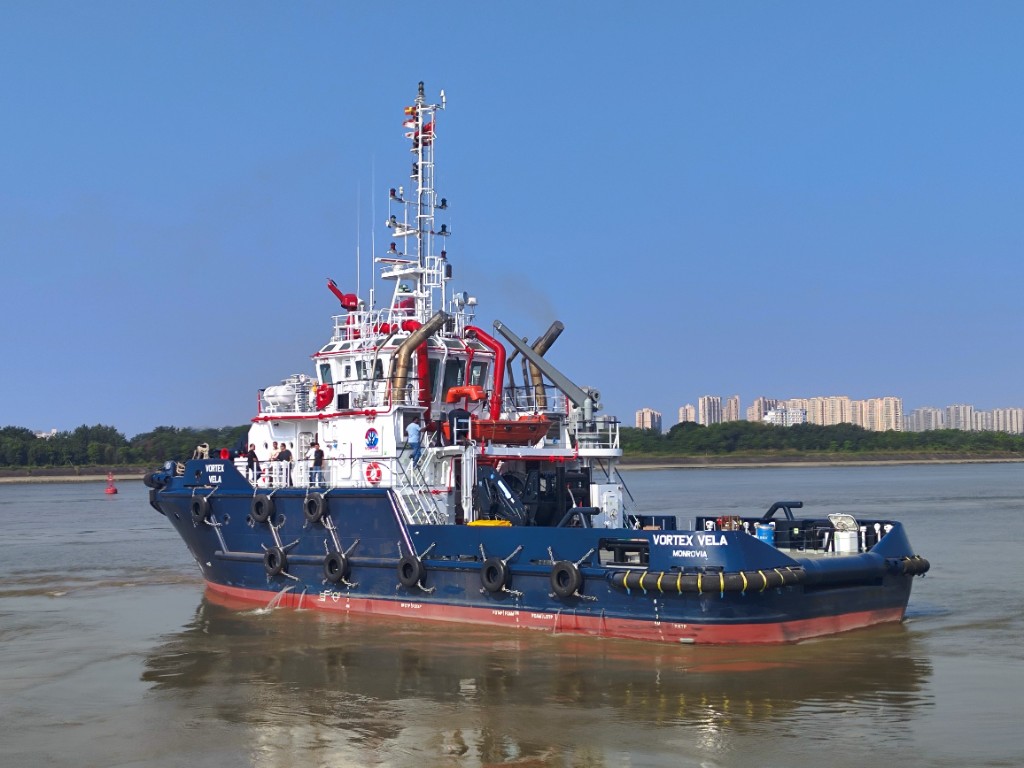

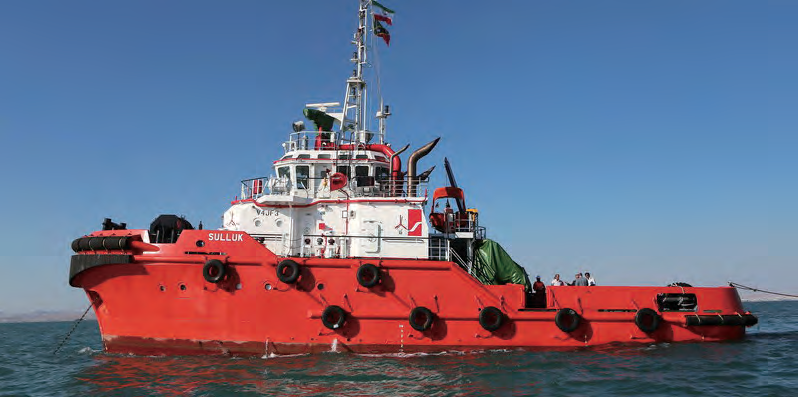

31M 2×2682BHP ASD Tug
GENERAL
TypeASD Tug, Fire Fighting Class 1
ClassificationABS ✠A1
FlagSt. Vincent
PRINCIPAL CHARACTERISTICS
Length Overall31.00 m
Beam11.00 m
Draft4.30 m
Depth5.60 m
GT471
TANK CAPACITIES
Fuel Capacity120 m³
Freshwater30 m³
PERFORMANCE
Speed Ahead12.5 knots
Bollard Pull70 tons
MAIN ENGINE
Main Engines2 × CAT 3516C (2682 BHP)
Propulsion2 × Schottel SRP 1515FP

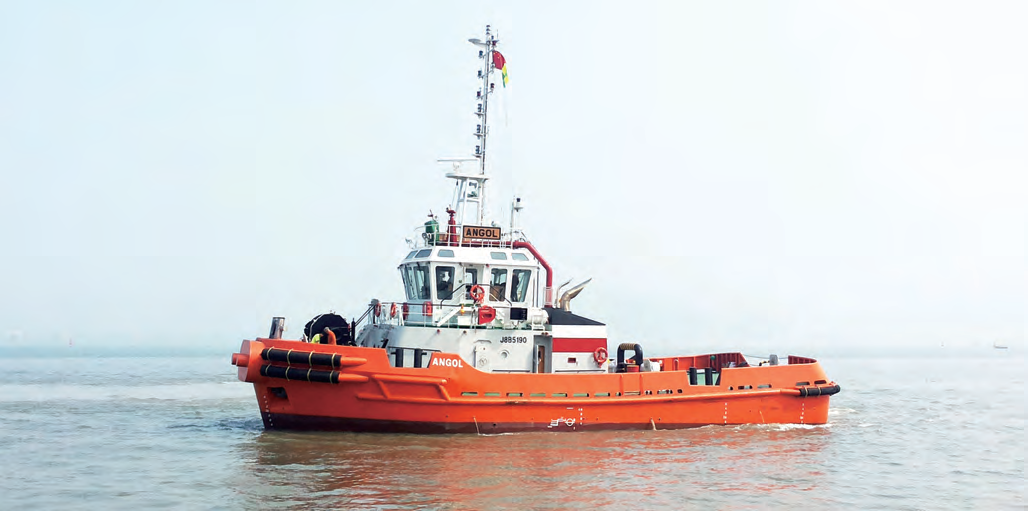

26.5M 2×2682BHP ASD Tug
GENERAL
TypeASD Tug, Fire Fighting Class 1
ClassificationABS ✠A1
FlagSt. Vincent
PRINCIPAL CHARACTERISTICS
Length Overall26.50 m
Beam11.00 m
Draft3.50 m
Depth4.50 m
GT328
TANK CAPACITIES
Fuel Capacity120 m³
Freshwater38 m³
PERFORMANCE
Speed Ahead12.5 knots
Bollard Pull70 tons
MAIN ENGINE
Main Engines2 × CAT 3516C (2682 BHP)
Propulsion2 × Schottel SRP 1515FP
32M 2×1973BHP ASD Tug
GENERAL
TypeASD Tug, Fire Fighting Class 1
ClassificationABS ✠A1
FlagSingapore
PRINCIPAL CHARACTERISTICS
Length Overall32.00 m
Beam10.60 m
Draft4.20 m
Depth5.00 m
GT445
TANK CAPACITIES
Fuel Capacity180 m³
Freshwater100 m³
PERFORMANCE
Speed Ahead11 knots
Bollard Pull58 tons
MAIN ENGINE
Main Engines2 × Niigata 6L26HLX (2000PS)
Propulsion2 × Niigata ZP-31

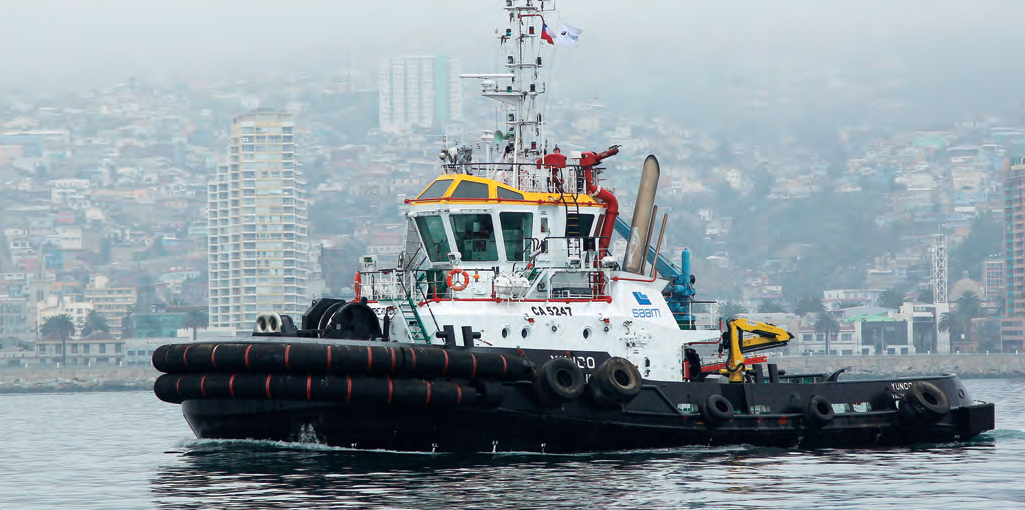

32M 2×3274BHP ASD Tug
GENERAL
TypeASD Tug, Fire Fighting Class 1
ClassificationABS ✠A1
FlagSt. Vincent
PRINCIPAL CHARACTERISTICS
Length Overall32.00 m
Beam12.80 m
Draft4.19 m
Depth5.37 m
GT495
TANK CAPACITIES
Fuel Capacity215 m³
Freshwater42 m³
PERFORMANCE
Speed Ahead13.0 knots
Bollard Pull (ahead)80 tons
Bollard Pull (astern)75 tons
MAIN ENGINE
Main Engines2 × GE 8L250 (3274 BHP)
Propulsion2 × Rolls-Royce US255 P30 FP

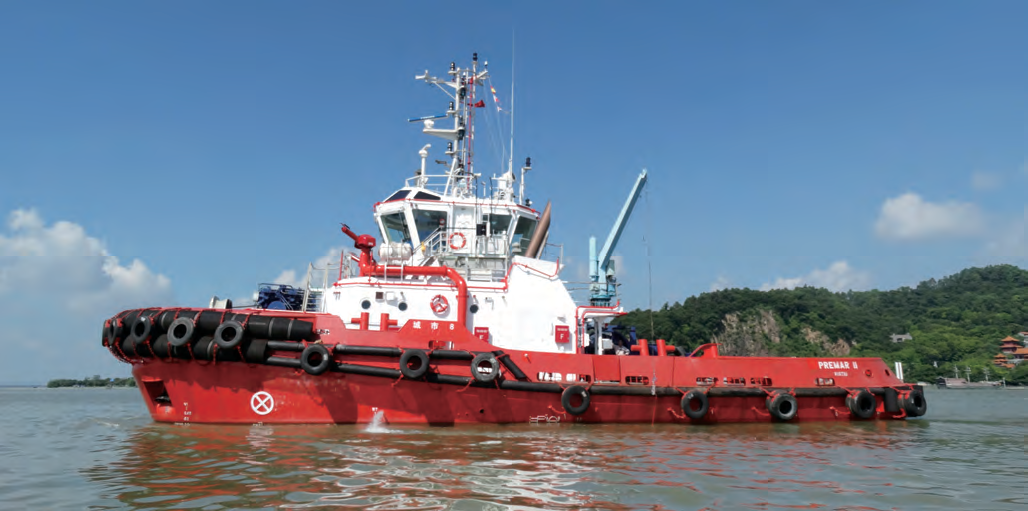

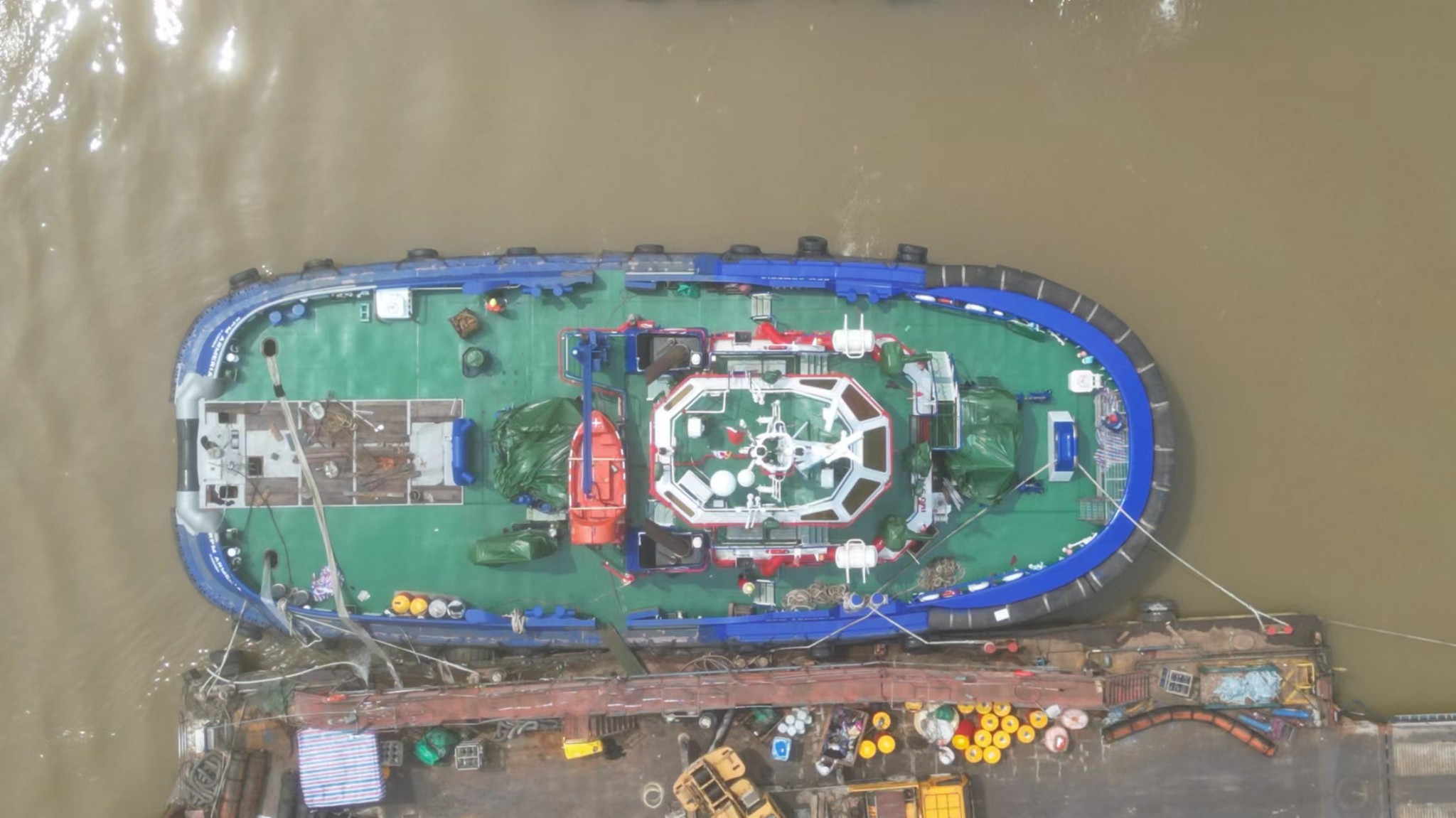

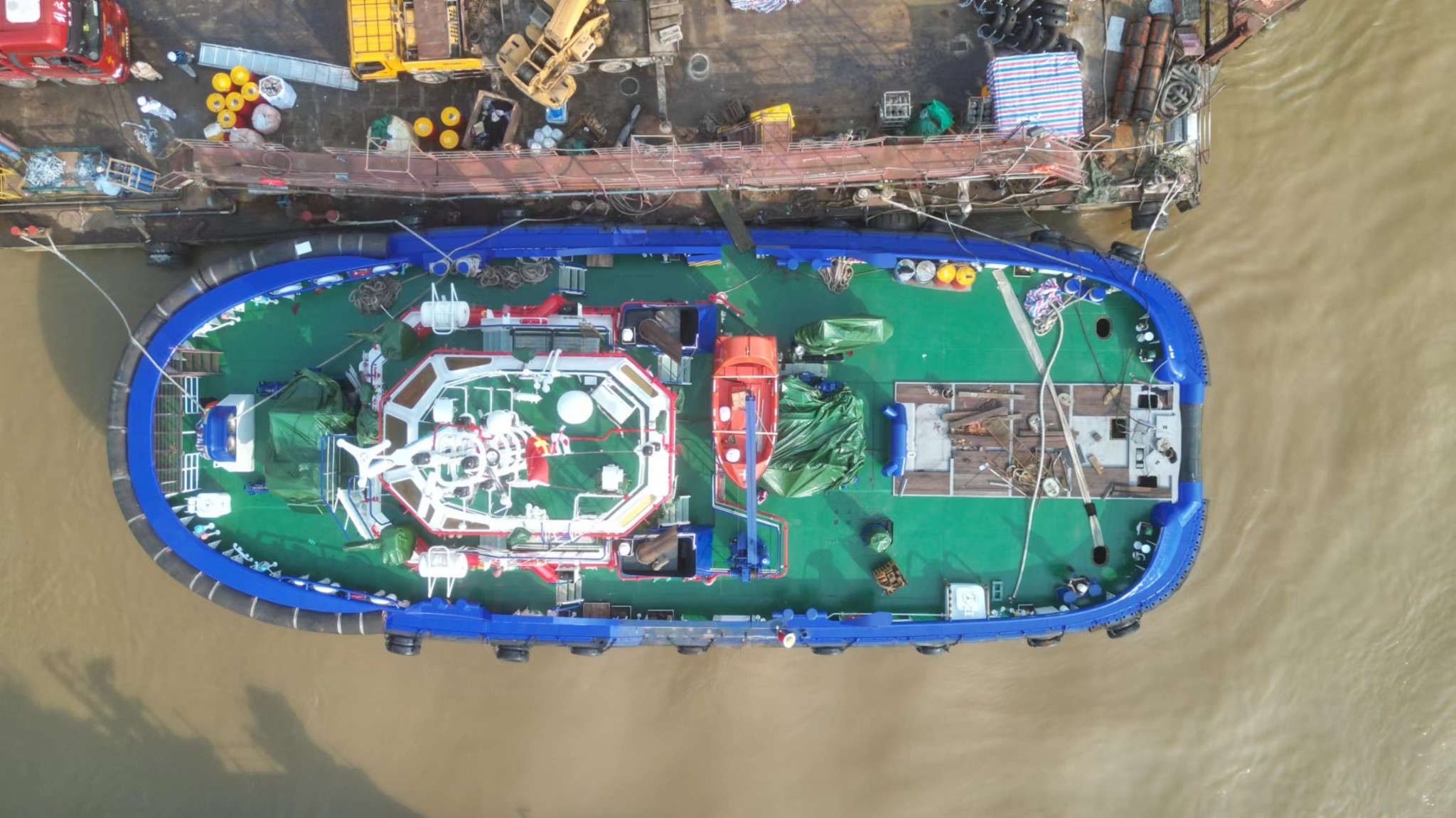

32M 2×3386BHP ASD Tug
GENERAL
TypeASD Tug, Escort, Oil Recovery
ClassificationABS ✠A1, ABCU
FlagSt. Vincent
PRINCIPAL CHARACTERISTICS
Length Overall32.00 m
Beam12.80 m
Draft4.19 m
Depth5.37 m
GT495
TANK CAPACITIES
Fuel Capacity196 m³
Freshwater30 m³
PERFORMANCE
Speed Ahead13.0 knots
Bollard Pull (ahead)82 tons
Bollard Pull (astern)80 tons
MAIN ENGINE
Main Engines2 × CAT 3516C (3386 BHP)
Propulsion2 × Rolls-Royce US255 P30 CP
